Device Drivers

bilbycast-manager has a driver-aware architecture: every device type (edge, relay, Appear X, …) registers a Driver implementation that contributes to the WebSocket protocol, REST surface, topology rendering, and AI assistant workflow. Adding support for a new third-party device is a matter of writing a driver and (usually) a sidecar API gateway — no manager core changes required.

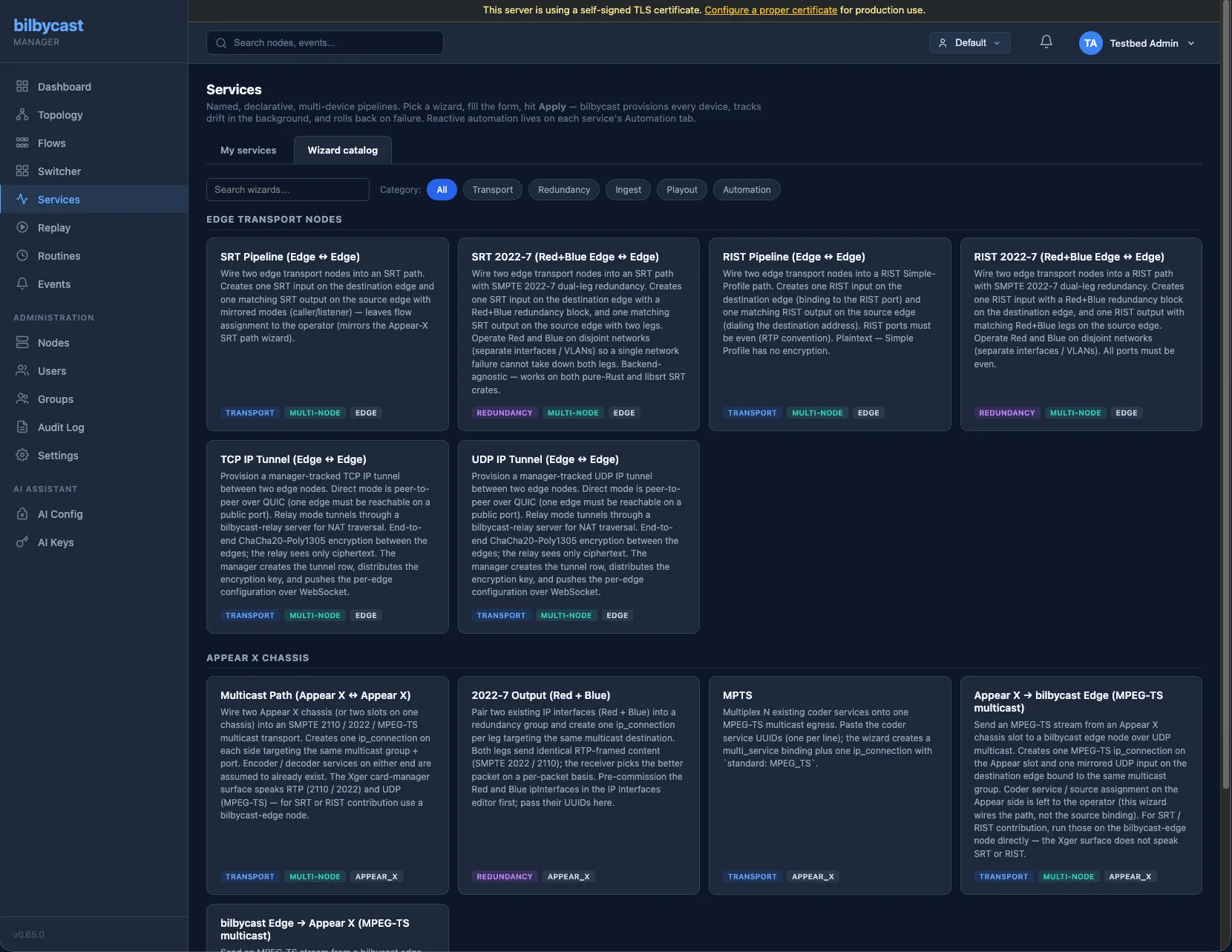

Services & Templates — the wizard catalogue of per-driver service templates that turn multi-node setups into a single guided click

This page is for developers integrating new device types. Operators using existing drivers don’t need to read it.

What a driver provides

A driver is a Rust implementation of the DeviceDriver trait (defined in bilbycast-manager/crates/manager-core/src/drivers/mod.rs), living in its own per-device plugin crate bilbycast-manager/crates/device-<name>/. It supplies:

Function	Purpose
Device type identifier	The string used in `node.device_type` (e.g., `"edge"`, `"appear_x"`)
Validation	`validate_command()` checks an incoming `command` payload before the manager core sends it, and returns descriptive errors
Command catalogue	`supported_commands()` — every command the device accepts, each with the minimum role needed to issue it
Action descriptors	Structured examples of the driver’s operations, published on the driver-discovery API and shown to the AI assistant as worked examples of its device commands
Topology rendering hints	An accent colour and a flag for whether the type is drawn in topology at all; the list of “ports” (inputs / outputs) comes from the driver’s browser-side JS plugin, not from Rust
Health derivation	Maps the driver’s native event/alarm format into a status string (`ok`, `degraded`, `critical`, `unknown`)
AI context contribution	A short text block describing the driver’s protocol semantics, which the AI assistant reads on demand as the `driver:<device_type>` topic

The trait is designed so that everything that varies per device type lives in the driver, and everything that’s shared (auth, push status, ghost cleanup, audit, RBAC) lives in the manager core.

How drivers integrate with the rest of the system

                    ┌──────────────────────────┐
                    │     Manager core         │
                    │   (auth, RBAC, audit,    │
                    │    push status, sync)    │
                    └────────────┬─────────────┘
                                 │
        ┌────────────────────────┼────────────────────────┐
        ▼                        ▼                        ▼
  ┌───────────┐           ┌───────────┐            ┌──────────────┐
  │ EdgeDriver │           │ RelayDriver│            │ AppearXDriver│
  └─────┬─────┘           └─────┬─────┘            └──────┬───────┘
        │                       │                         │
        │ WebSocket             │ WebSocket               │ WebSocket
        ▼                       ▼                         ▼
   bilbycast-edge          bilbycast-relay      bilbycast-appear-x-api-gateway
                                                        │
                                                        │ JSON-RPC over HTTPS
                                                        ▼
                                                  Appear X chassis

The pattern is the same for every driver: the manager core talks to a Rust process (the device or its sidecar gateway) over the standard bilbycast WebSocket protocol. The sidecar takes responsibility for translating between the bilbycast protocol and the device’s native API.

Two-part pattern: driver + sidecar gateway

For a third-party device that doesn’t natively speak the bilbycast WebSocket protocol, the recommended pattern is driver + sidecar:

Manager-side driver — A Rust plugin crate bilbycast-manager/crates/device-<vendor>/ that implements the DeviceDriver trait and exposes vendor-specific actions to the manager.
Sidecar API gateway — A standalone Rust binary that maintains a persistent WebSocket connection to the manager (using the same auth as a real edge or relay) and translates manager commands into the device’s native API calls. It also polls the device for stats / health / alarms and forwards them as bilbycast stats / health / event messages.

The sidecar runs anywhere it can reach the device and the manager — usually colocated with the device. From the manager’s perspective, it looks identical to a native bilbycast node.

bilbycast-appear-x-api-gateway is the reference implementation of this pattern. Its source layout is intended to be copy-able as a template — see Adding New Device Gateways.

Action descriptors

Action descriptors are worked examples of a driver’s device commands, for the AI assistant. Each descriptor includes:

pub struct AiActionDescriptor {
    pub name: String,                   // the command, e.g. "set_ip_input"
    pub display_label: String,          // human-readable label
    pub category: ActionCategory,       // ConfigAction | SimpleAction
    pub ai_prompt_description: String,  // when and how to use the command, for the model
    pub ai_prompt_example: String,      // the command's params, as JSON
    pub ui_hints: ActionUiHints,        // unused
}

pub struct ActionUiHints {
    pub button_label: String,
    pub button_style: String,
    pub payload_key: Option<String>,
    pub preview_type: Option<String>,
    pub execution_mode: String,
}

name — the device command the example sends: a bare name from the driver’s supported_commands() (set_ip_input), not driver-prefixed. It is wizard ids, not command names, that carry a <driver>. prefix (edge.srt-pipeline).
category — ConfigAction (the command carries a config payload) or SimpleAction (a few parameters). Descriptive metadata only.
ai_prompt_description — the instruction that tells the AI assistant when and how to use this command. Be specific about what it does and what its preconditions are.
ai_prompt_example — the params of the assistant’s device-command step, as JSON: {"command": "set_ip_input", "args": {"slot": 1, "inputs": [...]}}, where args is exactly what validate_command() receives beside type. Give examples only for commands the assistant may propose — a read (get_*, list_*), or a command one of its own actions owns (create_flow, start_flow, …), is left out of what the model sees, and so is an example that is not JSON.
ui_hints — display hints from an earlier assistant design that drew a button per action. Nothing reads them any more; they stay in the struct so the discovery API keeps its shape.

RBAC is not part of the action descriptor. The minimum role lives on the driver’s supported_commands() catalogue (CommandDescriptor.requires_role), and the manager core resolves it per request before sending anything.

When a new driver is registered, its descriptors are served by the driver-discovery API:

They appear in GET /api/v1/device-types (and GET /api/v1/device-types/{device_type}) as the device type’s ai_actions, alongside supported_commands and the driver’s UI capabilities.
The AI assistant shows them to the model as examples when it looks up the generic device-command action. A command it proposes is one of the driver’s supported_commands(), and applying it goes through the same command route as below — see AI Assistant.
Everything else lands on POST /api/v1/nodes/{id}/command: the manager core resolves the driver, calls validate_command(), checks the caller’s role against the command catalogue, and only then sends over the node’s WebSocket.

Health derivation

extract_health_status() returns a free-form Option<String> — the trait imposes no enum, and nothing downstream normalises the result. It is a declarative surface today: the node hub caches each node’s health payload verbatim and serves that to the UI, so nothing in the manager actually calls the method yet outside the driver-contract test. The four strings the drivers agree on are:

Status	When
`ok`	All flows / tunnels / inputs are running and no active alarms
`degraded`	Degraded service: minor alarms, partial outages, congestion
`critical`	Service-impacting failure: major alarms, no input lock, dead device
`unknown`	The health payload carried nothing the driver could read

The edge and relay drivers do nothing but pass through the status string the node reported — and both binaries hardcode "status": "ok" on every health beat, so in practice only an Appear X node ever reports one of the other three. The Appear X driver takes the same shortcut when the sidecar sent one — which today it always does — and otherwise derives a status from the alarm severity field of the Appear X JSON-RPC API:

Appear X health payload	Derived status
A `status` string is present	returned verbatim — the alarm mapping below is skipped entirely
`alarms` contains a `MAJOR` or `CRITICAL` entry	`critical`
`alarms` contains a `MINOR` or `WARNING` entry	`degraded`
`alarms` is present but carries no recognised severity	`degraded`
`alarms` is present and empty	`ok`
No `alarms` key at all	`unknown`

The mapping is internal to the driver — the manager core doesn’t need to know about Appear X severity classes.

Topology rendering

Drivers contribute to the topology view from both halves of the plugin:

Rust — ui_capabilities() declares list_in_topology (whether nodes of this type should be drawn as first-class topology nodes) and an accent_color name: "blue" for edge, "purple" for relay, "amber" for Appear X. Both are served on GET /api/v1/device-types, but no renderer reads them yet — the topology canvas still picks its own colours from the node’s device type.
JavaScript — the per-driver browser plugin’s optional extractEndpoints(node) returns the “ports”: the abstract inputs and outputs the device exposes, used to draw flow links between devices. topology/render.js calls it per node and either replaces the built-in endpoint list (for a pure plugin device like Appear X) or appends to it.

There is no driver icon hook — node glyphs are drawn by the topology renderer itself. The graph view (force-directed) and flow view (deterministic columns) both consume the endpoint list, so a third-party device appears in topology once its JS plugin is in place.

Walking through `AppearXDriver`

To make this concrete, here’s how AppearXDriver (in crates/device-appear-x/src/lib.rs) implements each piece:

Piece	What `AppearXDriver` does
`device_type()`	Returns `"appear_x"`
`validate_command(action)`	Validates Appear X-specific payloads (IP input/output addressing, slot/board IDs in hex). The manager core then sends the validated command to the connected sidecar over the existing WebSocket; the sidecar handles JSON-RPC translation
`supported_commands()`	The command catalogue, each entry carrying the role needed to issue it
`ai_actions()`	Returns worked examples of the Appear X write commands the assistant may propose: `set_ip_input`, `set_ip_output`, `clear_all_counters`, `set_audio_profiles`, `set_xger_ip_interfaces`, `set_coder_services`
`extract_metrics(stats)`	Rolls the latest stats up into the dashboard summary — alarm counts by severity, input/output counts, aggregate bitrates and RTP / CC error totals
`extract_health_status(health)`	Maps alarm severity to `ok` / `degraded` / `critical` / `unknown`, as tabulated above
`ui_capabilities()`	Declares the topology / dashboard participation flags, the `"amber"` accent colour, and that this device type is fronted by a gateway sidecar polling an external target
`ai_context()`	Returns a short Appear X protocol primer the AI assistant can use to generate sensible commands

The full source is in bilbycast-manager/crates/device-appear-x/src/lib.rs.

Adding a new driver

The high-level steps are:

Create a new plugin crate crates/device-<vendor>/ and implement the DeviceDriver trait.
Register the driver on the DriverRegistry that crates/manager-server/src/main.rs builds at startup — the registry type itself lives in manager-core/src/drivers/mod.rs, but the registrations are in main.rs.
Add the browser-side plugin module at crates/manager-server/src/ui/static/js/devices/<vendor>/index.js (copy _example/), add its one-line import to devices/index.js, and add the matching include_str! constant plus .route() in crates/manager-server/src/ui/mod.rs. The JS is compiled into the binary rather than served from a directory, so a module without those two wiring edits is never fetched. The plugin declares its accent colour and capability gates inline — the shipped ones mirror their driver’s ui_capabilities() by hand rather than fetching GET /api/v1/device-types/{device_type} — and the sibling ui-manifest endpoint is still a Phase-2 stub returning empty arrays.
(Optional but recommended) Build a sidecar gateway as a standalone Rust binary — copy the layout of bilbycast-appear-x-api-gateway/.
Add a docs page describing the device type, the sidecar setup, and any vendor-specific configuration.
Add unit tests for the validation and action-descriptor surfaces.

For a step-by-step walkthrough using Appear X as the worked example, see Adding New Device Gateways.
